Qseven

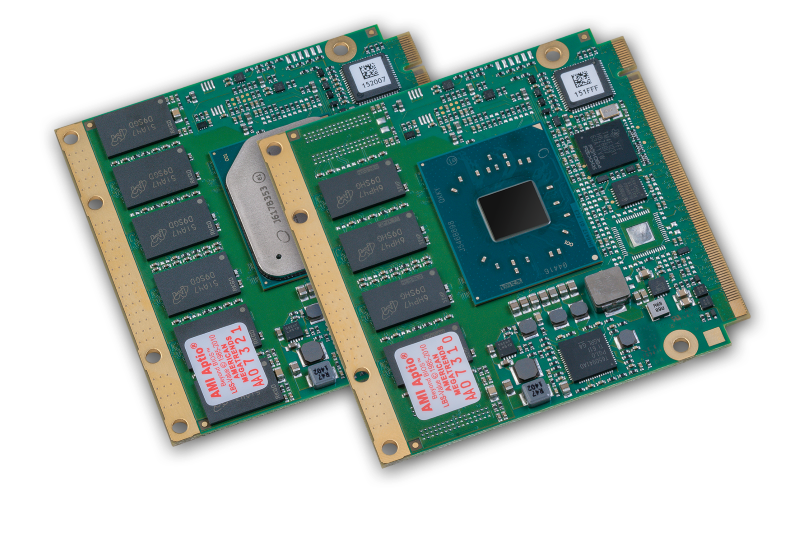

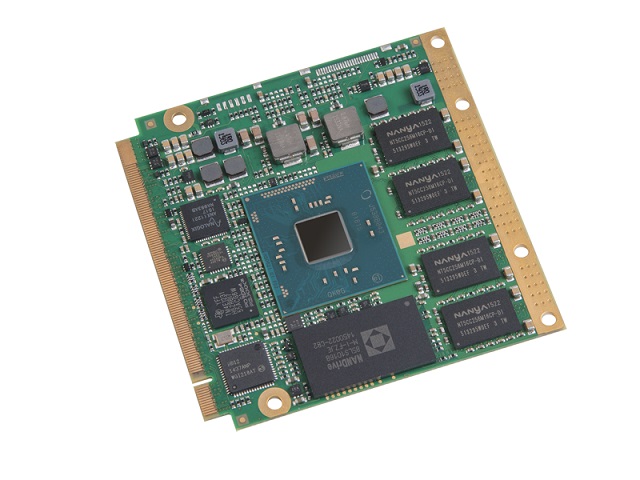

MSC Q7-AL
Intel® Atom™ E3900 / Pentium® / Celeron® SOC
The new MSC Q7-AL module features Intel's next-generation low-power System-on-Chip (SOC) for the Internet of Things. The Intel Atom Processor E3900 series integrates processor core, graphics, memor...
MSC Q7-BW
Intel® Atom™ / Pentium® / Celeron® SOC N3000
The MSC Q7-BW module is based on Intel‘s multi-core system-on-chip (SOC) Atom generation ("Braswell") that integrates next generation Intel processor core, graphics, memory, and I/O interfaces into...

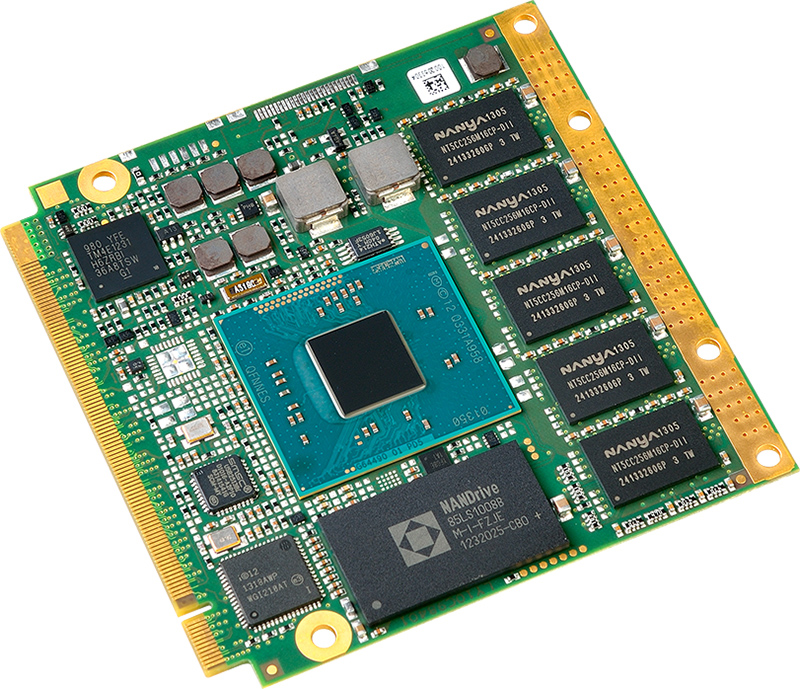

MSC Q7-BT
Intel® System on Chip (SOC) Atom™ E3800
The MSC Q7-BT module is based on the Qseven Rev. 2.0 and using Intel's multi-core System-On-Chip (SOC) Atom generation that integrates next generation Intel processor core, graphics, memory, and I/...

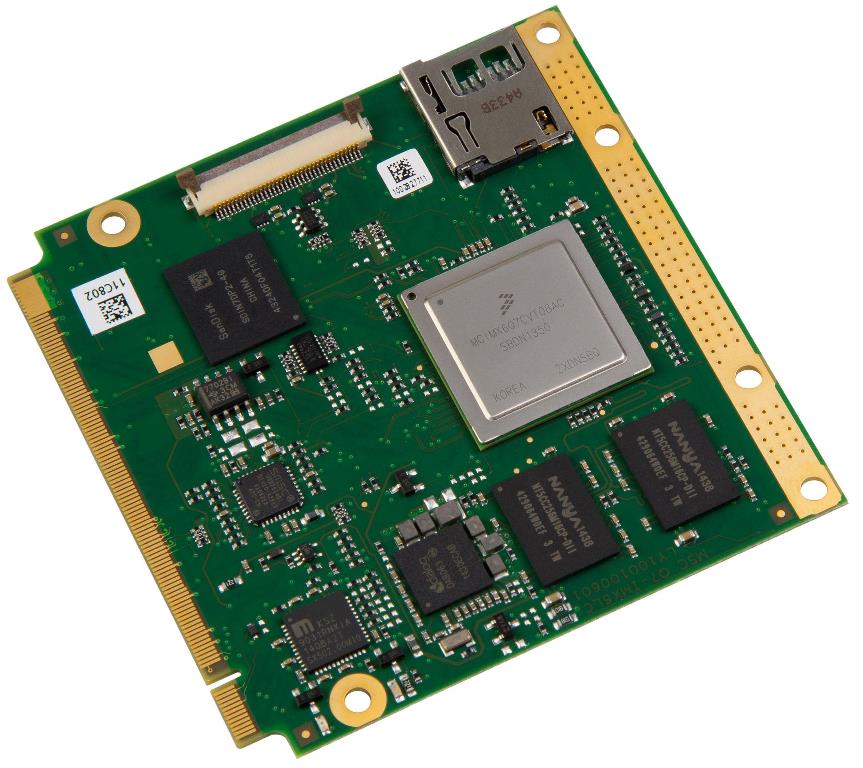

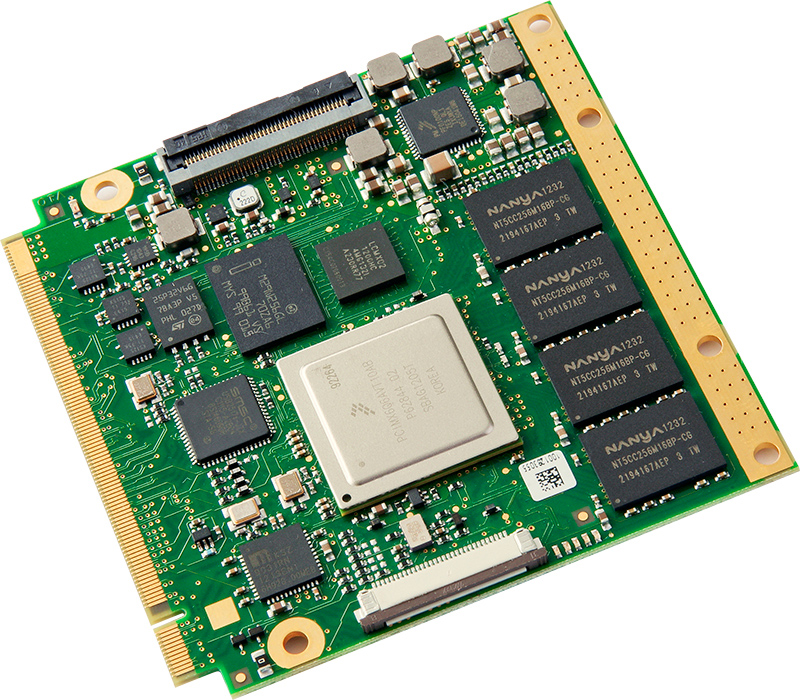

MSC Q7-IMX6PLUS
The design of the MSC Q7-IMX6PLUS module was optimized to provide an especially economic platform for NXP’s i.MX6 and i.MX6Plus CPUs offering quad-core, dual-core and single-core ARM® Cortex™-A9 co...
MSC Q7-IMX6
The design of the MSC Q7-IMX6 module is based on NXP’s new i.MX6 CPU offering quad-core, dual-core and single-core ARM Cortex™-A9 compute performance at very low power consumption and excellent gra...

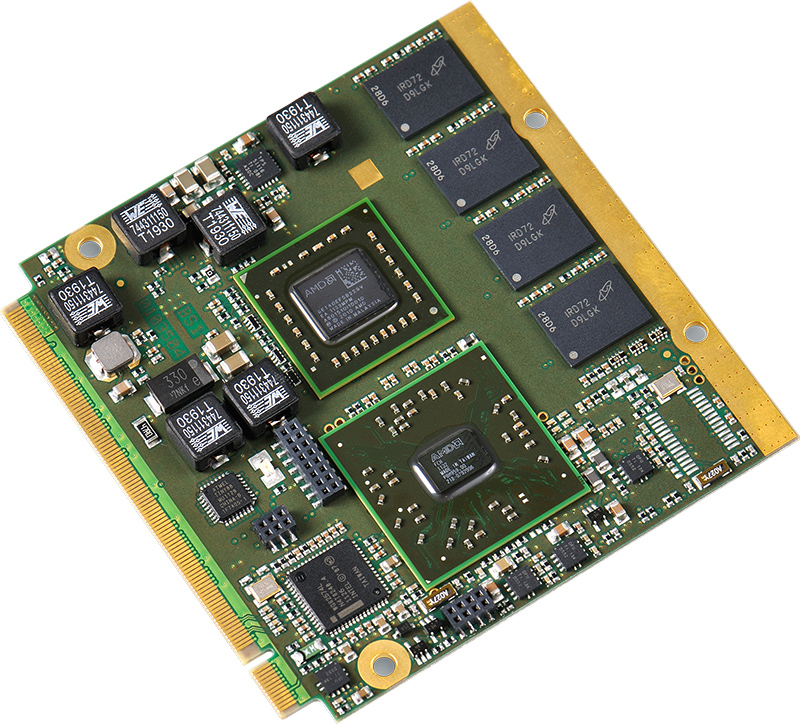

MSC Q7-A50M
The design of the MSC Q7-A50M module is based on AMD’s new Embedded G-Series (“eOntario”) offering a low-power CPU and a discrete-level GPU in a single embedded Accelerated Processing Unit (APU). T...

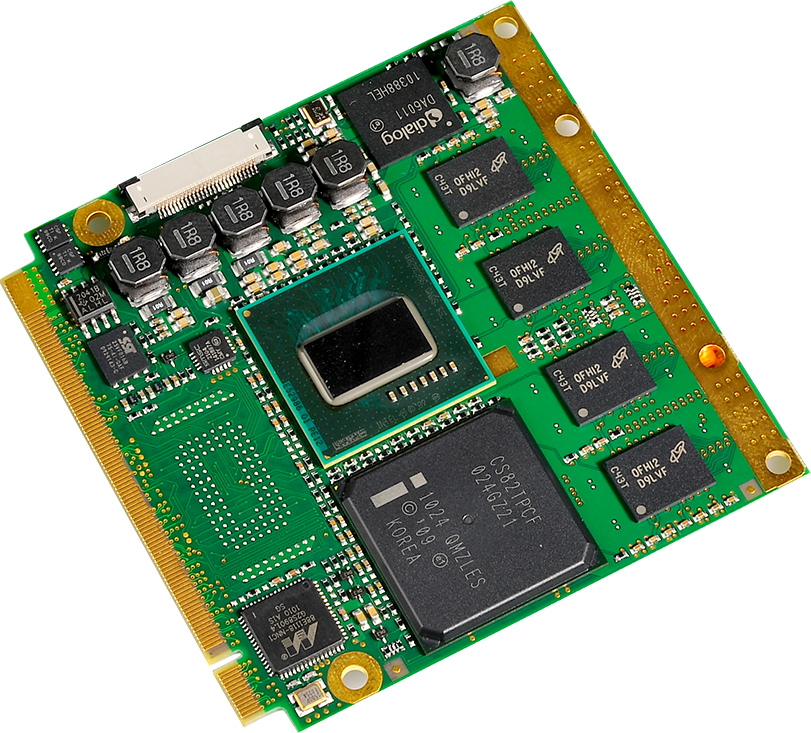

MSC Q7-TCTC-FD
The design of the MSC Q7-TCTC-FD module is based on Intel‘s ATOM™ CPU technology and the Intel EG20T Platform Controller Hub offering lowest power consumption x86 technology and a high degree of fu...

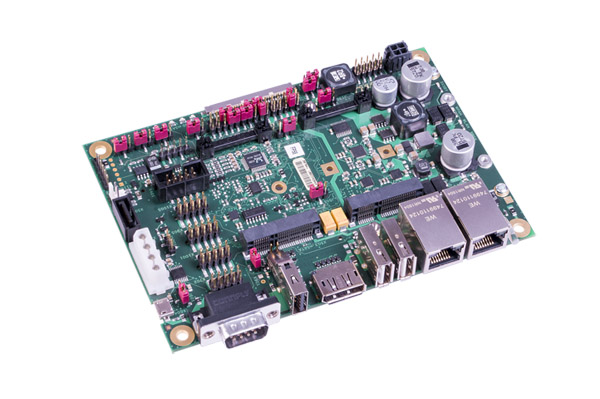

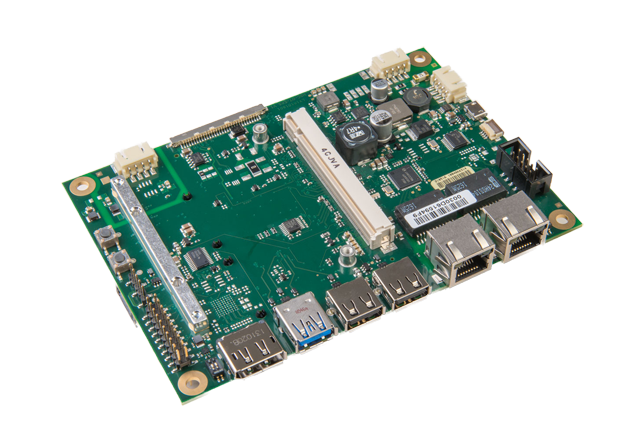

MSC Q7-MB-EP6
The new Qseven™ Rev. 2.0 embedded platform MSC Q7-MB-EP6 offers a variety of interfaces commonly used in embedded applications such as Gigabit LAN, USB 3.0, USB 2.0 Host, USB 2.0 Client, RS232/485 ...

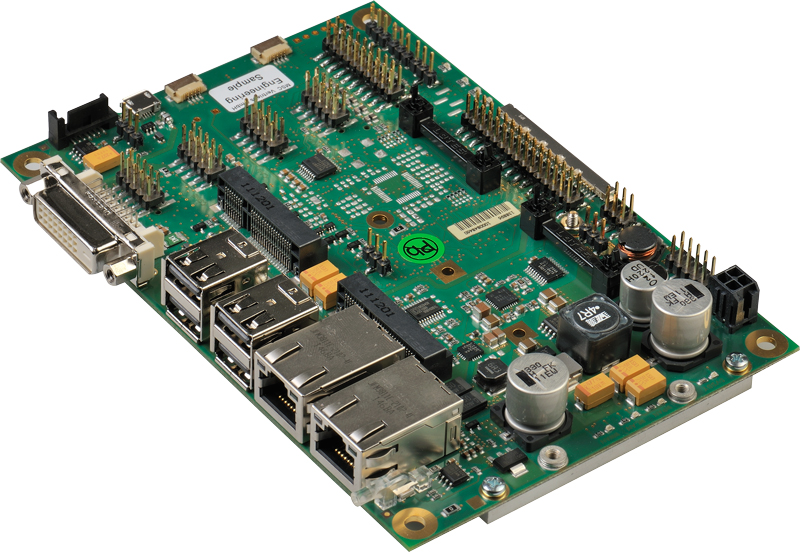

MSC Q7-MB-EP5
Embedded Platform Qseven Rev. 2.0
The new Qseven™ Rev. 2.0 embedded platform MSC Q7-MB-EP5 offers a variety of interfaces commonly used in embedded applications such as Gigabit LAN, USB 3.0, USB 2.0, RS232/485 and CAN as well as Di...

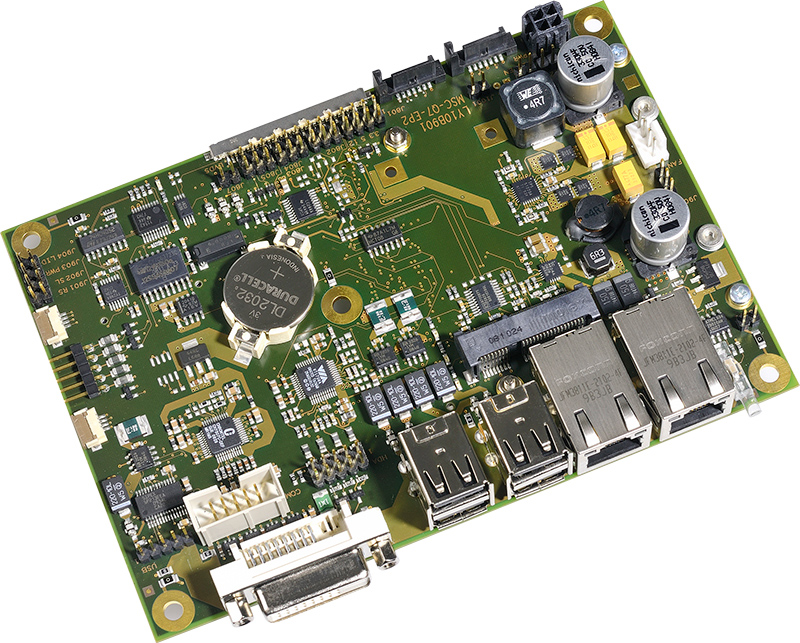

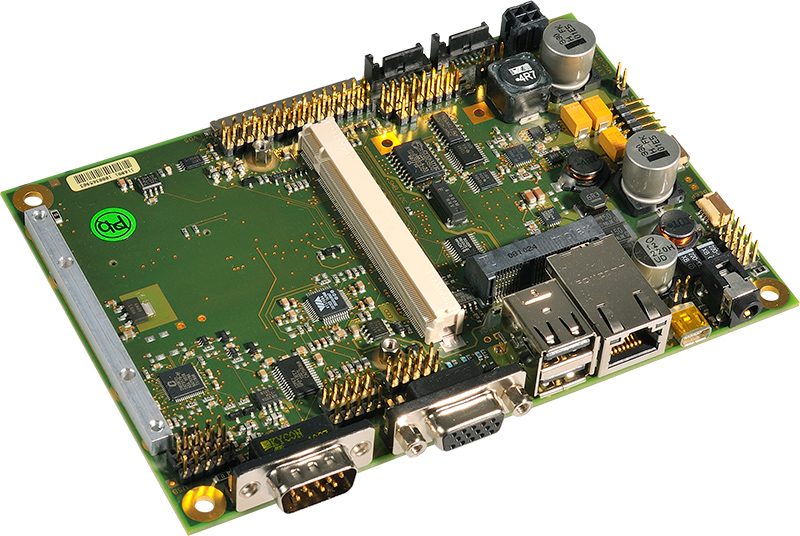

MSC Q7-MB-EP4
The Qseven™ embedded platform MSC Q7-MB-EP4 offers a variety of interfaces commonly used in embedded applications such as Gigabit LAN, USB 2.0, RS232 and LVDS / DVI to connect displays.
MSC Q7-MB-EP3
The EP3 platform offers also the new CAN interface defined in the Qseven specification rev.1.2 on a pinrow. An optional transceiver is available on a 9-pin header for easy integration.
MSC Q7-MB-EP2
The EP2 platform mounts the Qseven module on the solder side to easily attach the CPU to a metal enclosure for a proper fan less heat dissipation. The CAN interface is available if Qseven modules.

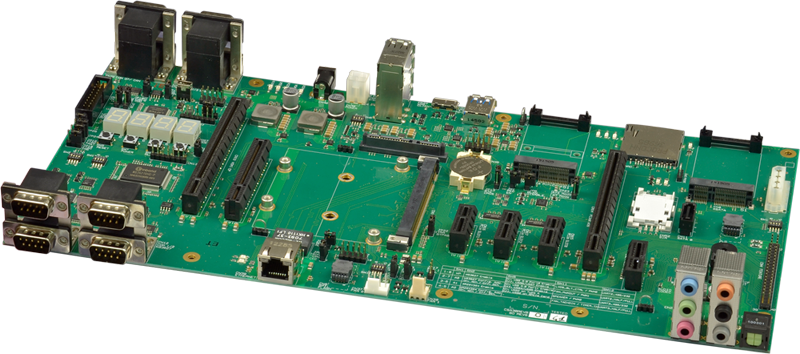

MSC Q7-MB-RP3

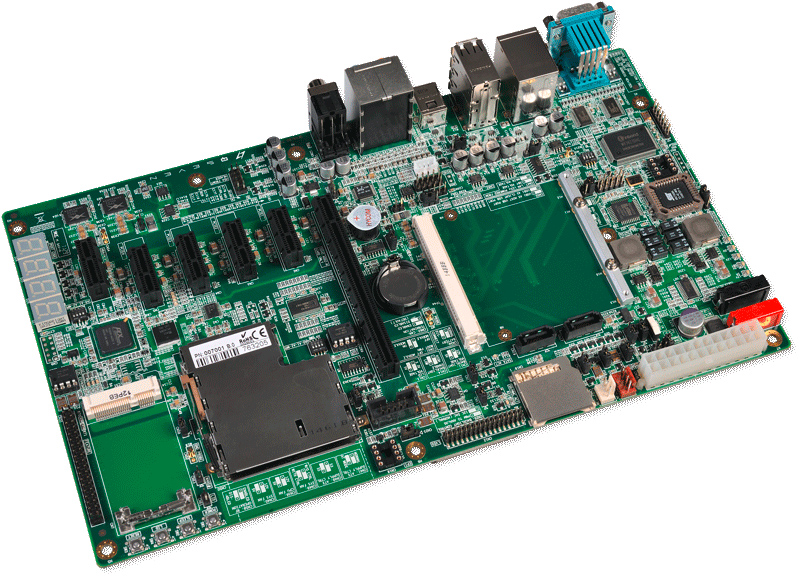

The MSC Q7-MB-RP3 is the third generation reference platform provided to test and qualify Qseven™ Rev. 2.0 modules for compatibility with the specification.
MSC Q7-MB-RP2
The MSC Q7-MB-RP2 is the second generation reference platform provided to test and qualify Qseven™ Rev. 1.2 modules for compatibility with the specification. The board is shipped with a complete se...

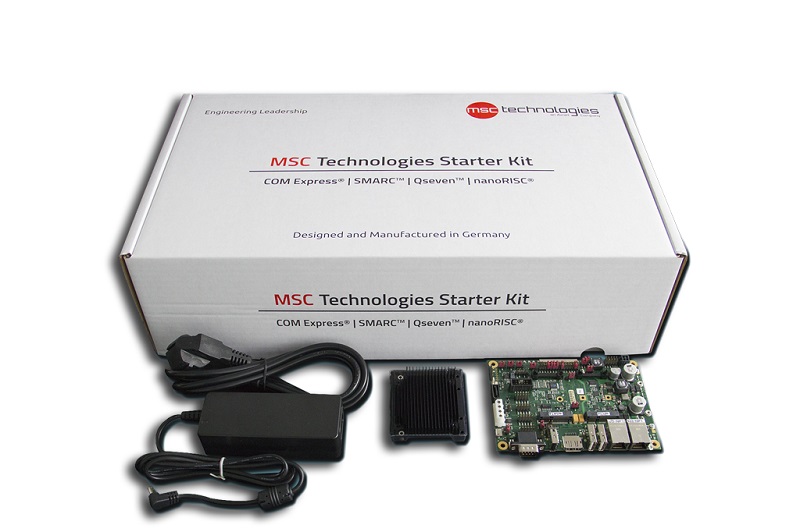

MSC Q7-SK-BT-EP6
Starterkit for Qseven Modules with Atom E3800
The Qseven Rev. 2.0 Starter Kit for Qseven modules with the Intel Atom E3800 SOCs is based on a 3.5" Qseven carrier board MSC Q7-MB-EP6 and contains all necessary products to quickly enable the use...
MSC Q7-SK-BW-EP6
Starterkit for Qseven Braswell Modules
The Qseven Starter Kit for Qseven modules with the Intel "Braswell" N3000 is based on a 3.5" Qseven rev. 2.0 carrier board MSC Q7-MB-EP6 and contains all necessary products to quickly enable the us...
MSC Q7-SK-AL-EP6
Starterkit for Qseven Modules with Atom E3900
The Qseven Starter Kit for Qseven modules with the Intel "Apollo Lake" E3900 is based on a 3.5" Qseven rev. 2.0 carrier board MSC Q7-MB-EP6 and contains all necessary products to quickly enable the...

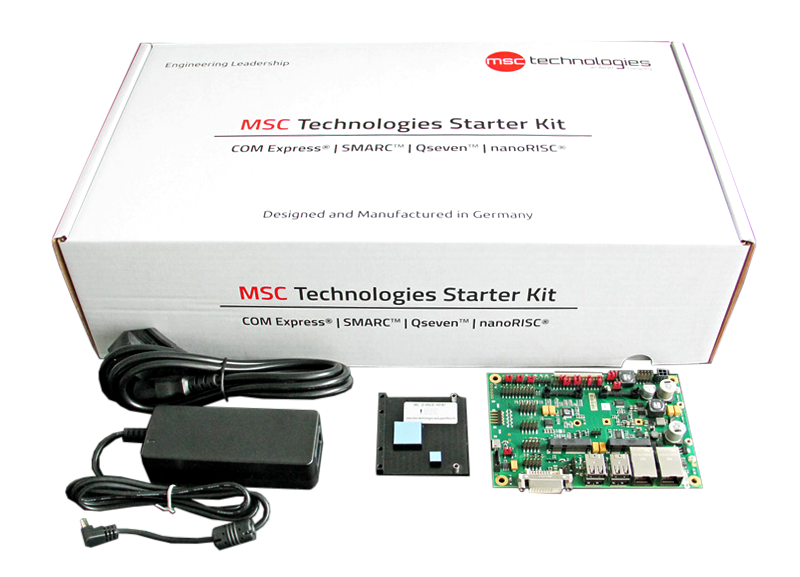

MSC Q7-SK-IMX6-EP4
Starterkit for Qseven Modules with i.MX6 CPU
The Qseven Starter Kit for Qseven modules with the NXP i.MX6 CPUs is based on a 3.5" Qseven carrier board MSC Q7-MB-EP4 and contains all necessary products to quickly enable the user to run and eva...
